Pro smart OCPP

A charger comes with high-integrated smart board and communication function, the wallbox designed meet IP65, can be used indoor and outdoor. It support OCPP 1.6J protocol, and RFID.Owners can collect all data in platform and manage the charger, master all the status of the charger. To realize the real smart charging.

Product features

Solid design wallbox

Meet IP65 & IK10 standard by lab test

5 inch HD touch screen

Easiest user interaction and real-time status view

Indicator light

Showing real time wallbox status

RFID Sensor

Identification & payment solution

Access hole

Type B RCD reset hole

Emergency button

Press to cut off the power immediately

TPU cable

4meter cable with excellent durability and top cold resistance at-40°C

TUV approved connector

Completed shaped and easy hold; Silver plated terminals to minimize wear and tear on EV charging socket

Designed for future smart charging network

• Timeless and classic design fits in urban space and architecture

• Compatible with full smart functions under OCPP 1.6 J-SON

• Authorization for use on a mobile application or a cloud platform to monitor the charger operation remotely

• Connecting to the network by 4G,WIFl and Ethernet

• Dynamic power control with Teison load balancer

• Built-in memory to save local charging data

• Built-in MID certificated meter

• Independent Access hole,wiring entrance and rail-mounted compo-nents for most effective installation and maintenance

• Protecting the life of car battery with the most stable charging process

Highest safety

• PCV0 housing with 2.0-3.0mm thick exudes robustness and protects inside components from external influences

• The housing is made from materials specially developed for top heat dissipation and with flame retardant coating

• Completely meets all requirements of the CE applicable standards

• AC+ DC faults detection

• Real-time monitoring for heat and all instabilities during charging pro-cess

‹

›

‹

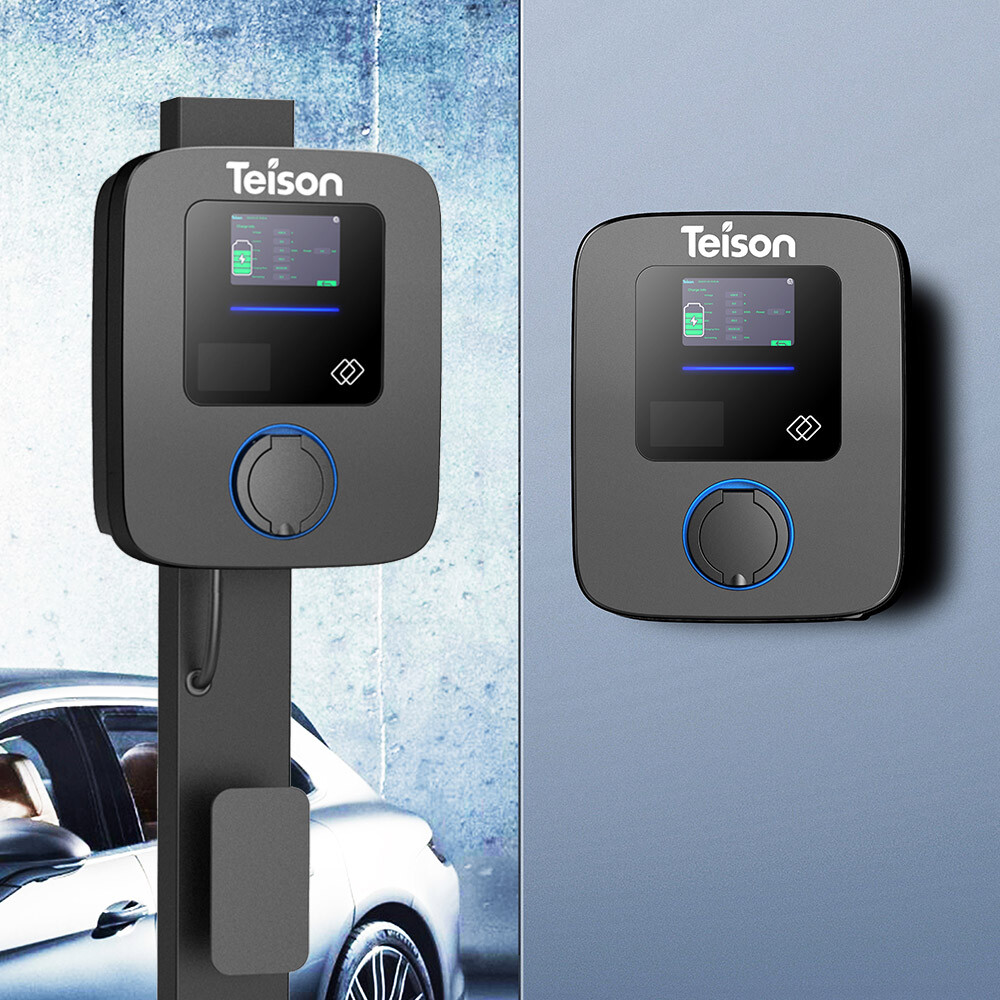

  • 5.jpg
  • 04新OCPP主图.jpg

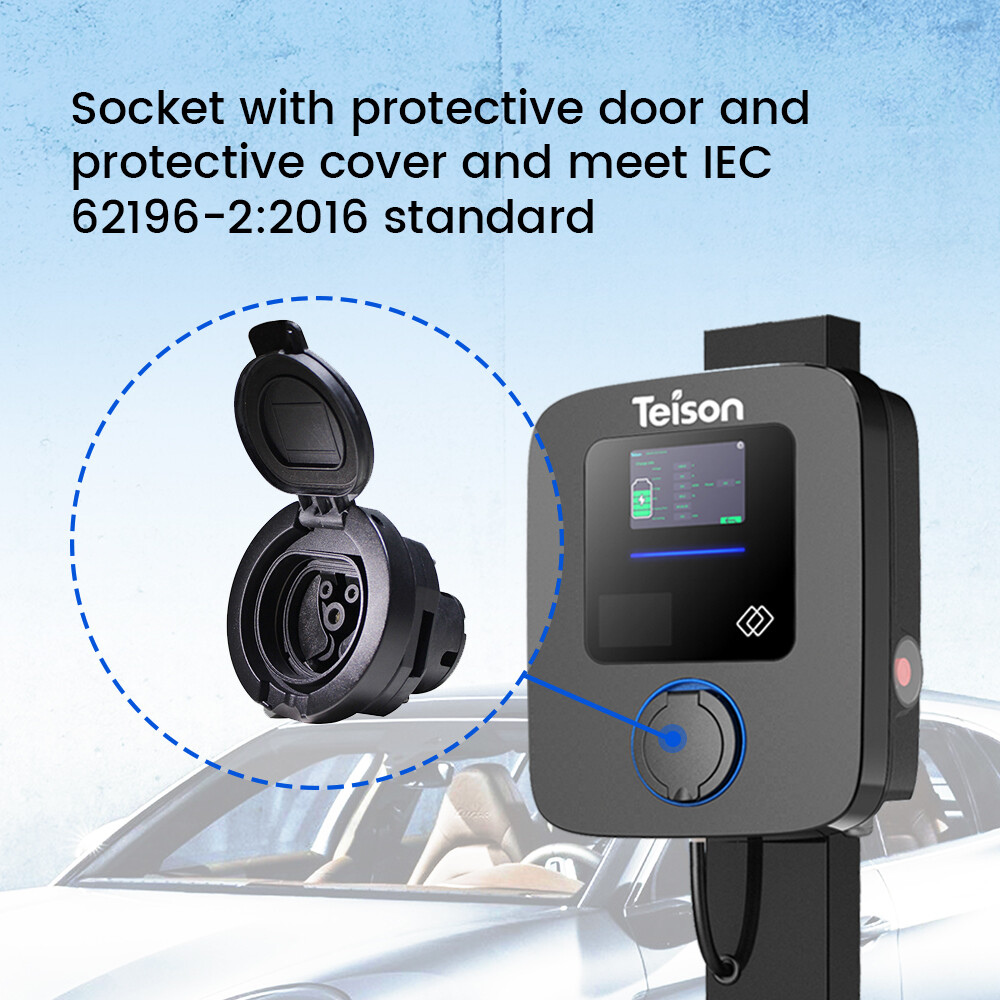

  • 03新OCPP主图.jpg

›

AC Smart OCPP EV Wallbox

MyTeison  App Control (Wi-Fi, Ethernet, 4G)

RFID Card (with Prepaid Capabilities)

OCPP1.6J

Multi Load Balancing with Load Balancer

Single Load Balancing with 485 Electricity Meter

Local Whitelist (RFID Card Without Internet Connection)

Support for Teison Platform Full Functions

Request A Quote

FEATURES/ADVANTAGES

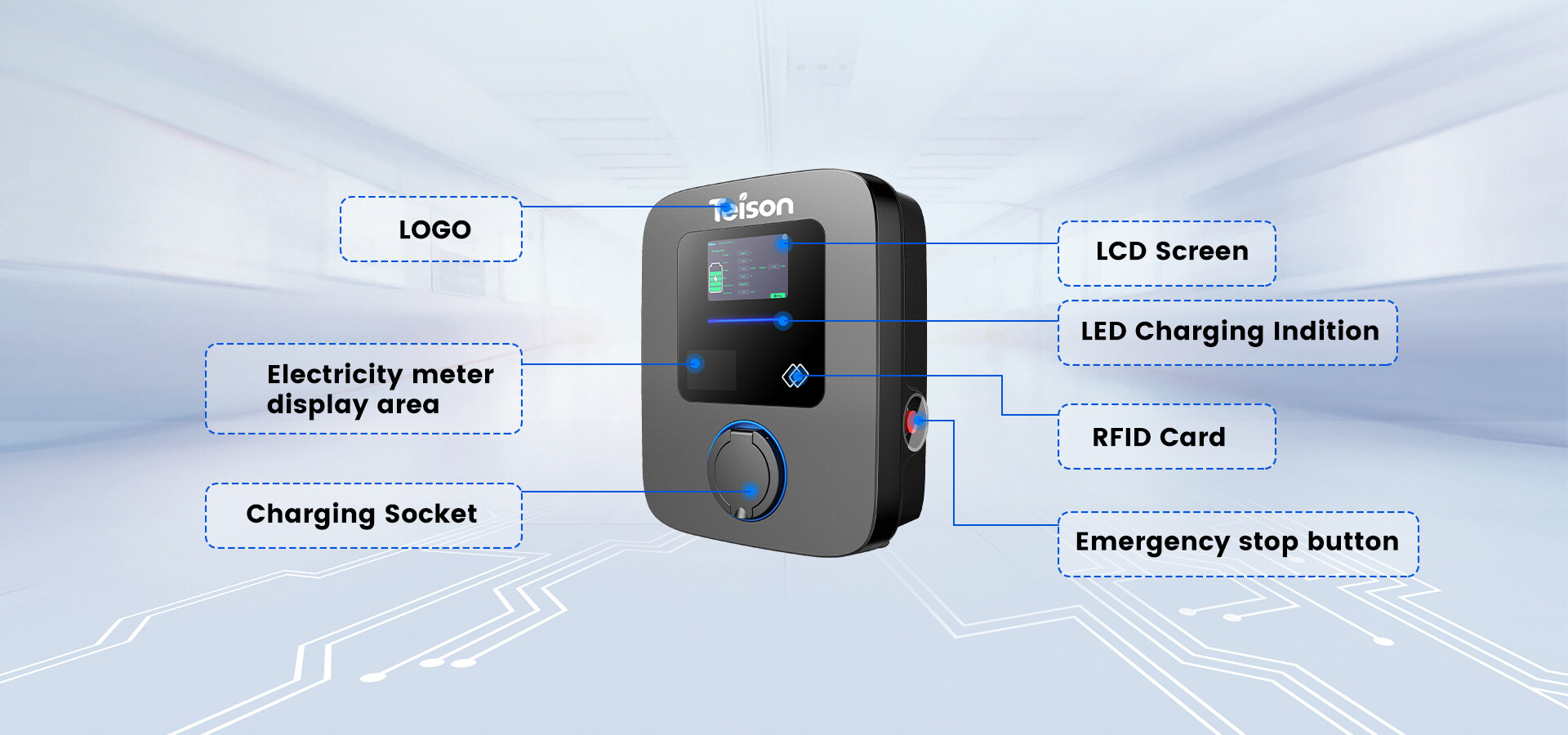

  • OCPP官网详情banner 1920x900.jpg

Parameter

Specification
Model TS-EVC07-002C-001(S) TS-EVC11-002C-001(S) TS-EVC22-002C-001(S)
Electrical Properties
Voltage 230V AC±10% 380V AC±10% 380V AC±10%
Output Current 32A 16A 32A
Frequency 50/60Hz 50/60Hz 50/60Hz
Output Power 7kw 11kw 22kw
Residual current protection TYPE B(AC 30mA+DC 6mA)
Design
Emergengy  Stop  Button Yes
Display 5"LCD touch screen
RFID Function 5pcs cards
Charging Outlet One charging socket (Type 2)/4.5M charging cable
Power incoming line 0.5M
Housing Material PCVO for outdoor
Front  Panel PC
Installation Method Wall-mount/Floor stand
Network Gateway Wifi
Communication   Protocol OCPP1.6(J-SON)
Safety Standard EN IEC61851-1:2019;IEC61851-1:2017;EN IEC61851-21-2:2021;
 EN IEC61000-6-1:2019;EN IEC61000-6-2:2019;EN IEC61000-6-3:2021;
 EN IEC61000-6-4:2019:ETSI EN 300 328 V2.2.2:2019:
 ETSI EN 300 330 V2.1.1:2017;ETSI EN301 489-1 V2.2.3:2019;
 ETSI EN301 489-3 V21.1:2019;ETSI EN301 489-17 V3.2.4:2020;
 EN IEC62311:2020;
Waranty 2 years
Environmental Performance
Protection Level IP65
Working Altitude ≤2000M
Application Site Indoor/Outdoor
Working  temperature -30℃-+50℃
Working  humidity 5%-95%.No condensation
Atmospheric pressure 80kPa-101kPa
Packing Details
Product Size 398*324*120mm 398*324*120mm 398*324*120mm
Product Weight 10KG 11KG 12KG
Optional Configure
Dynamic Load balancing RS485 meter or local junction box(optinal)
Energy Meter MID certified
Network Cateway Ethernet/4G
